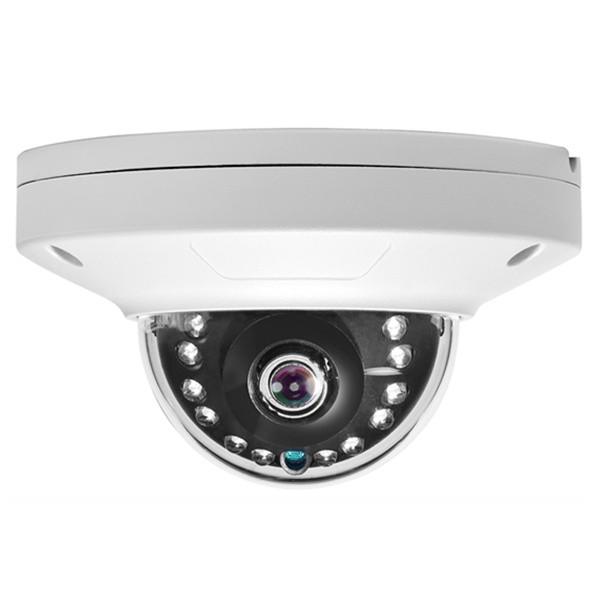

1.3Mp CMOS HD Mini Network Dome Camera

Model Number : SF-DA5130WP

Item : 1.3Mp CMOS HD Mini Network Dome Camera

Skype : david.zksv

E-mail : sales@safe-cctv.com

Contact Now

1.3Mp CMOS HD Mini Network Dome Camera

Features:

• With advanced video compression technology, high compression ratio, process flexible
• Progressive CMOS scan, capture motion images without saw toot
• Support standard ONVIF protocol
• Support TF card, Max. 32GB.
• Support POE.
• Support dual-stream encoding and smart phone surveillance.
• Support 3D noise reduction. BLC, WDR
• Support auto-electronic shutter, adapt to different surveillance environment.
• Multiple Functions: one-key reset, heartbeat, mirror, PTZ control, etc
Notes: The default port is POE (or TF card), Reset, Network, Power.

Specification :
Model	Model NO.	SF-DA5130WP
Model	Product Name	1.3Mp CMOS HD Mini Network Dome Camera
Camera	Image Sensor	1/3" Progressive Scan CMOS
	Min. Illumination	0.5Lux / (F1.2,AGC ON),0.1Lux / (F1.2,AGC ON,Sensitivity×5) ,
	Min. Illumination	0 Lux with IR
	Electronic Shutter Speed	1/25s~1/100,000s
	Focal Length	6mm@/F1.4, Angle of fiield of View:45.3°
	Focal Length	3.6mm(2.8mm Optional)
	Mount Type	M12
	Day/Night	ICR
	Noise Reduction	3D
Compression	Compression standard	H.264/MJPEG
	H.264 Cord Type	Main Profile
	Bit Rate	32 K bps~16Mbps
Image	Max. Photo	1280 × 960
	Resolution	50Hz:25fps (1280×1960),25fps (1280×720)
	Resolution	60Hz:30fps (1280×960),30fps (1280×720)
	Picture Set	Saturation, brightness, contrast adjustable through client software or IE browser
Network	Alarm	Motion detection, Keep out alarm, Memory full and Memory fault
	Protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,
	Protocol	NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS
	ONVIF	Support
	Common Functions	Heartbeat, One-key reset, Prevent flashing,Dual-stream,
	Common Functions	Mirror,Password protection, Video covering, watermark
Port	Local-storage	Support TF card, Max. 32GB
Port	Ethernet	1pc RJ45 10M / 100M Adaptive Ethernet front-end ports
Other	Working Environment	-25°C~~60°C~,humidity<95%(No condensation)
	Power supply	DC12V±10% /12V POE
	Power consumption	5W MAX
	Ingress Protection	IP66
	Dimensions (mm)	ΦH: 119.867.5MM
	Weight	380/500 g (N.W/G.W)
